D38999/26FG35PN | DEUTSCH

NSN: 5935-01-098-6253, 5935-01-147-5733, 5935-99-001-5562

79 Pin Plug, circular, high reliability, high durability connector designed for use in military, aerospace, aviation and marine applications, MIL-Qualified to MIL-DTL-38999 series III

Manufacturer: DEUTSCH

SKU: D3899926FG35PN@DEUTSCH

Manufacturer part number: D38999/26FG35PN

Call for pricing

How To Read Part Number D38999/26FG35PN

	Part Number Section	Code	Description
Connector Type	D38999/26FG35PN	D38999/26	MIL-DTL-38999 Series 3
Shell Type	D38999/26FG35PN	26	Straight Plug
Material	D38999/26FG35PN	F	Aluminum
Finish	D38999/26FG35PN	F	Electroless Nickel Aluminum 200°C, EMI shielding –65dB @ 10GHz, 48 hour salt spray
Shell Size	D38999/26FG35PN	G	G - Straight Plug
Insert Arrangement	D38999/26FG35PN	G35	79 #22D, M
Contact Type	D38999/26FG35PN	P	Pin
Keying Position	D38999/26FG35PN	N	Normal

Features

EMI Shielding: solid metal-to-metal coupling, grounding fingers, electroless nickel plating, and thicker wall sections provide superior EMI shielding capability of 65dB minimum at 10 GHz
Withstands High Vibration: operates under severe high temperature vibration, through 200°C
Withstands High Impact Shock: excellent resistance shock with no electrical discontinuity and no disengagement of the mated connectors
Contact Protection: recessed pins in this 100 % scoop - proof connector minimize potential contact damage
No Lockwiring: unique, self - locking, quick coupling connector eliminates lockwiring
Quick Coupling: completely mates and self - locks in a 360° turn of the coupling nut
Moisture Resistance: improved interfacial seal design helps prevent electrolytic erosion of contacts

Applications

D38999/26FG35PN is currently used in many applications requiring extremely reliable interconnection. Because of its quick-mating, environmentally-sealed construction, triple-lead thread, self-locking coupling, and EMIRFI-shield this connector guarantees very high performance in most demanding applications. D38999/26FG35PN applications include:

Rockets and Space Vehicles
Military aircraft
Commercial aircraft
Avionics
Unmanned systems
Communications equipment
Armored personnel carriers & tanks
High temperature industrial equipment
Missile and missile defense
Ships

Dimensions

F +.008/-0 (+0.2/-0)	G ± .004 (±0.1)	S Max.
1.50 (38.1)	1.22 (30.9)	1.64 (41.7)

Technical Specifications

Operating Temperature	-65°C to +200°C (-85°F to +392°F)
Sealing	Against sand, dust per MIL-STD-202 & ice resistance
Salt Spray	48 hours
Chemical Resistance	Lubricating oils, hydraulic fluids, coolants, deicing fluids per MIL-STD-1344A Method 1016 condition a-1
Sine Vibration	60g at -55°C per MIL-DTL-38999L 4.5.23.2.1
Random Vibration	49.5 grms at ambient temperatures
Shock	300 grms
EMI Shielding Effectiveness	100 MHz to 10 GHz - minimum attenuation of 50dB

Keying Position

Keying Position	A° BSC	B° BSC	C° BSC	D° BSC
N	80	142	196	293

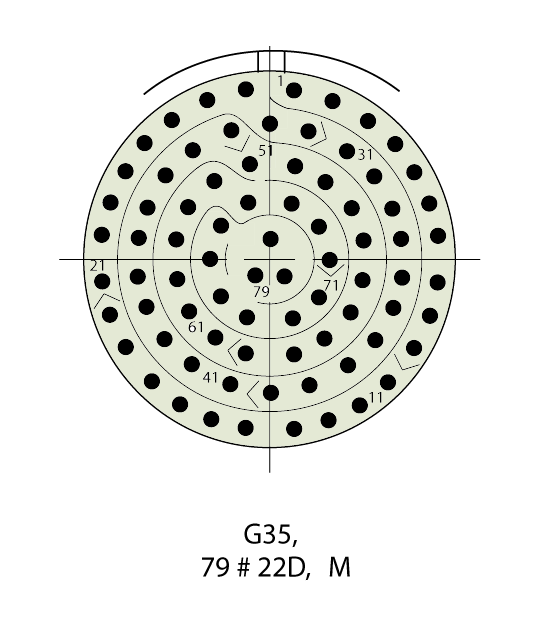

Contact Layout

Contacts

P/N:	Qty: 79
Contact Type	Pin
Contact Size	#22D
Specification	MIL-C-39029
Termination Method	Crimp
Crimp Wire Gauge	28,26,24,22
Contact Material	Copper Alloy
Contact Plating	50 microinches Gold Plate
Color Bands	Orange Blue Black
RoHS	Yes
